SQL Server setup fails with “Failed to retrieve data for this request”



SQL Server setup would fail with below error in message box “Failed to retrieve data for this request”

{

TITLE: SQL Server Setup failure.

——————————

SQL Server Setup has encountered the following error:

Failed to retrieve data for this request..

For help, click: http://go.microsoft.com/fwlink?LinkID=20476&ProdName=Microsoft%20SQL%20Server&EvtSrc=setup.rll&EvtID=50000&EvtType=0xE8A0C283%25400xAC7B1A58%25401233%254053

——————————

BUTTONS:

OK

}

In Summary.txt you will notice error similar to one below

Overall summary:

Final result: Failed: see details below

Exit code (Decimal): -2146233088

Exit facility code: 19

Exit error code: 5376

Exit message: Failed to retrieve data for this request.

Start time: 2015-02-19 19:48:58

End time: 2015-02-19 19:50:47

Requested action: Install

Exception help link: http://go.microsoft.com/fwlink?LinkId=20476&ProdName=Microsoft+SQL+Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=12.0.2342.0&EvtType=0xE8A0C283%400xAC7B1A58%401233%4053&EvtType=0xE8A0C283%400xAC7B1A58%401233%4053

Exception summary:

The following is an exception stack listing the exceptions in outermost to innermost order

Inner exceptions are being indented

Exception type: Microsoft.SqlServer.Management.Sdk.Sfc.EnumeratorException

Message:

Failed to retrieve data for this request.

HResult : 0x80131500

Data:

HelpLink.ProdName = Microsoft SQL Server

HelpLink.BaseHelpUrl = http://go.microsoft.com/fwlink

HelpLink.LinkId = 20476

HelpLink.EvtType = 0xE8A0C283@0xAC7B1A58@1233@53

DisableWatson = true

Stack:

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.Process(Object connectionInfo, Request request)

at Microsoft.SqlServer.Chainer.Infrastructure.SqlDiscoveryDatastoreInterface.ProcessDTbl(DataTable dt, Int32 level)

at Microsoft.SqlServer.Chainer.Infrastructure.SqlDiscoveryDatastoreInterface.CollectSqlDiscoveryData(String machineName)

at Microsoft.SqlServer.Chainer.Infrastructure.SqlDiscoveryDatastoreInterface.CollectDiscoveryData(String machineName)

at Microsoft.SqlServer.Chainer.Infrastructure.SqlDiscoveryDatastoreInterface.LoadData(IEnumerable`1 machineNames, String discoveryDocRootPath, String clusterDiscoveryDocRootPath)

at Microsoft.SqlServer.Configuration.SetupExtension.RunDiscoveryAction.ExecuteAction(String actionId)

at Microsoft.SqlServer.Chainer.Infrastructure.Action.Execute(String actionId, TextWriter errorStream)

at Microsoft.SqlServer.Setup.Chainer.Workflow.ActionInvocation.<>c__DisplayClasse.<ExecuteActionWithRetryHelper>b__b()

at Microsoft.SqlServer.Setup.Chainer.Workflow.ActionInvocation.ExecuteActionHelper(ActionWorker workerDelegate)

Inner exception type: Microsoft.SqlServer.Configuration.Sco.SqlRegistryException

Message:

The network path was not found.

HResult : 0x84d10035

FacilityCode : 1233 (4d1)

ErrorCode : 53 (0035)

Data:

WatsonData = Microsoft.SqlServer.Configuration.Sco.SqlRegistryException@Win32Error

Stack:

at Microsoft.SqlServer.Configuration.Sco.SqlRegistry.CreateBaseKey(ServiceContainer ctx, String machineName, IntPtr hKey, String keyName, RegistryAccess access, RegistryView view)

at Microsoft.SqlServer.Configuration.Sco.SqlRegistry.GetLocalMachine(ServiceContainer ctx, String machineName, RegistryAccess access, RegistryView view)

at Microsoft.SqlServer.Discovery.DiscoveryUtils.GetLocalMachineRootKey(ServiceContainer ctx, String machineName, RegistryView registryView)

at Microsoft.SqlServer.Discovery.DiscoveryUtils.GetLocalMachineSubKey(ServiceContainer ctx, String machineName, RegistryView regView, String regPath, RegistryAccess registryAccess)

at Microsoft.SqlServer.Discovery.DiscoveryEnumObject.GetSql2kMsiInstanceListInHive(String machineName, RegistryView regView)

at Microsoft.SqlServer.Discovery.DiscoveryEnumObject.LoadSql2kInstanceList(String machineName)

at Microsoft.SqlServer.Discovery.Product.GetData(EnumResult erParent)

at Microsoft.SqlServer.Management.Sdk.Sfc.Environment.GetData()

at Microsoft.SqlServer.Management.Sdk.Sfc.Environment.GetData(Request req, Object ci)

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.GetData(Object connectionInfo, Request request)

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.Process(Object connectionInfo, Request request)

Watson error

Watson bucket data:

Bucket param 1: SQL Server 2014@RTM@

Bucket param 2: 0x6785B09D

Bucket param 3: 0xE8A0C283

Bucket param 4: 0x74E34741

Bucket param 5: 0xAC7B1A58@1233@53

Bucket param 6: RunRemoteDiscoveryAction

Bucket param 7:

Bucket param 8:

Bucket param 9: 0xD195CE25

Bucket param 10:

From detail.txt

(01) 2015-02-19 19:49:25 Slp: Discovery on nodename failed due to exception

(01) 2015-02-19 19:49:25 Slp: Microsoft.SqlServer.Management.Sdk.Sfc.EnumeratorException: Failed to retrieve data for this request. —> Microsoft.SqlServer.Configuration.Sco.SqlRegistryException: The network path was not found.

at Microsoft.SqlServer.Configuration.Sco.SqlRegistry.CreateBaseKey(ServiceContainer ctx, String machineName, IntPtr hKey, String keyName, RegistryAccess access, RegistryView view)

at Microsoft.SqlServer.Configuration.Sco.SqlRegistry.GetLocalMachine(ServiceContainer ctx, String machineName, RegistryAccess access, RegistryView view)

at Microsoft.SqlServer.Discovery.DiscoveryUtils.GetLocalMachineRootKey(ServiceContainer ctx, String machineName, RegistryView registryView)

at Microsoft.SqlServer.Discovery.DiscoveryUtils.GetLocalMachineSubKey(ServiceContainer ctx, String machineName, RegistryView regView, String regPath, RegistryAccess registryAccess)

at Microsoft.SqlServer.Discovery.DiscoveryEnumObject.GetSql2kMsiInstanceListInHive(String machineName, RegistryView regView)

at Microsoft.SqlServer.Discovery.DiscoveryEnumObject.LoadSql2kInstanceList(String machineName)

at Microsoft.SqlServer.Discovery.Product.GetData(EnumResult erParent)

at Microsoft.SqlServer.Management.Sdk.Sfc.Environment.GetData()

at Microsoft.SqlServer.Management.Sdk.Sfc.Environment.GetData(Request req, Object ci)

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.GetData(Object connectionInfo, Request request)

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.Process(Object connectionInfo, Request request)

— End of inner exception stack trace —

at Microsoft.SqlServer.Management.Sdk.Sfc.Enumerator.Process(Object connectionInfo, Request request)



Resolution

1. Check the connectivity between node from which you are installing SQL Server to other nodes. (\\Othernodes should work when you are installing SQL on box which is part of windows cluster regardless of SQL Cluster).

Advertisements

SQL Server cluster installation checklist

List of checks you may need to perform before you install SQL Server Cluster.

1. Verify your system meets the minimum requirements
910228 SQL Server 2005 Readme and installation requirements
http://support.microsoft.com/default.aspx?scid=kb;EN-US;910228
907284 Changes to the readme file for SQL Server 2005
http://support.microsoft.com/default.aspx?scid=kb;EN-US;907284
327518 The Microsoft support policy for a SQL Server Failover cluster – Please note that ONLY Microsoft Failover Clusters are supported.
http://support.microsoft.com/default.aspx?scid=kb;EN-US;327518
SQL Server 2008  Before Installing Failover Clustering
http://download.microsoft.com/download/4/5/3/453739ed-cb74-46b1-b7af-f157ee71db20/SQL2008Readme.htm.
http://msdn.microsoft.com/en-us/library/ms189910%28v=SQL.100%29.aspx

2. Log on as an Administrator.
SQL Server 2005/2008:  Log on to the cluster node as a domain administrator that is also local administrator on all nodes, but not necessarily an account that is to be used as a service startup account for the SQL Server services.

Pre create user groups in active directory for different SQL Server 2005/2008 services(SQL,Agent,FT).SQL Server setup will add the service accounts of SQL Services to this groups during setup. You have to pre create unique group name for each Service in AD and enter it when prompted during SQL Server2005/2008 Cluster setup.
SQL Server Setup grants the following Windows NT rights and privileges to the Group you enter during setup (If you can not run the setup as domain administrator then add the service logon accounts to the security groups created in AD before the setup).
For SQL Server group
Log on as a service (SeServiceLogonRight)
Act as part of the operating system (SeTcbPrivilege) (only on Windows 2000)
Log on as a batch job (SeBatchLogonRight)
Replace a process-level token (SeAssignPrimaryTokenPrivilege)
Bypass traverse checking (SeChangeNotifyPrivilege)
Adjust memory quotas for a process (SeIncreaseQuotaPrivilege)
Permission to start SQL Server Active Directory Helper
Permission to start SQL Writer
and many more
For  SQL Server Agent group
Log on as a service (SeServiceLogonRight)
Act as part of the operating system (SeTcbPrivilege) (only on Windows 2000)
Log on as a batch job (SeBatchLogonRight)
Replace a process-level token (SeAssignPrimaryTokenPrivilege)
Bypass traverse checking (SeChangeNotifyPrivilege)
Adjust memory quotas for a process (SeIncreaseQuotaPrivilege)

3. There should not be a pending Reboot requirement

Check pending Reboot requirement in following registry:
HKLM\SYSTEM\CurrentControlSet\Control\Session Manager
In the right-hand pane, is there a value of PendingFileRenameOperations?  If so, is it empty?
If empty close the registry editor.  If not empty, reboot the machine prior to running setup.  After logging in, re-check this registry value to make sure it is empty.

4. Verify Cluster “Heartbeat”
For a Failover Clustered Instance installation on Windows 2003 or earlier, verify cluster networking was setup per:
258750 Recommended private “Heartbeat” configuration on a cluster server
http://support.microsoft.com/?id=258750
NOTE: This needs to be followed explicitly in regards to the binding orders and your heartbeat adapter’s configuration.

5. Verify the TCP\IP Advanced DNS settings are identical on the “Public” network adapters between all Failover cluster nodes

6. Stop All Non- Microsoft Services  Excluding services required by SAN or network adapters online

7. Make sure  below services are running on all node’s
Cryptographic Services <====This must be running on all nodes.
DNS Client
Event Log
Remote Registry Service <====This must be running on all nodes.
Task Scheduler
Windows Management Instrumentation Driver Extensions
Windows Management Instrumentation

8.  Flush Cached DNS Entries
Flush the DSN cache.

Ipconfig /flushdns
then… Referesh te netbios name registered
Nbtstat –RR

9. Verify Logon Server
Open a command prompt on each node and enter the command:

set logonserver

Verify if logon server is same on all nodes.

10. Verify Admin Shares
IPC$
C$
Admin$
DriveLetter$
DriveLetter = Disk in which you have setup files.

Use the “Shared Folders” MMC snap-in  to verify the existing Administrative shares.

11. Only One RDP Session

Make sure no one else is logged in to any of the nodes. There should be only one logon session in active node which we use for setup.
12 . Make sure we are able to failover SQL Server groups to all nodes.

13. Cluster MSDTC
Create MSDTC resource.

14. If windows2008+ Grant  “Create Computer Objects” permission for  the computer object created for the cluster  (Computer Name object(CNO)).

http://mssqlwiki.com/2009/03/26/installation-of-sqlserver20052008-fails-on-windows2008-cluster/

15. For Windows 2008, see How to configure DTC for SQL Server in a Windows 2008 cluster http://blogs.msdn.com/cindygross/archive/2009/02/22/how-to-configure-dtc-for-sql-server-in-a-windows-2008-cluster.aspx
Use the following KB article to Cluster MSDTC if not already clustered on Windows 2003:
301600 How to configure Microsoft Distributed Transaction Coordinator on a Windows Server 2003 cluster
http://support.microsoft.com/default.aspx?scid=kb;EN-US;301600

16. Grant Read SPN and write SPN permission for startup account of SQL Server (or) Security group provided during installation for SQL Service startup account.

17) Verify Dependencies http://support.microsoft.com/default.aspx?scid=kb;EN-US;835185

A SQL product other than SQL Server 2014 CTP1 is detected. You cannot install this release until the existing instances of SQL products are uninstalled

When you install SQL Server 2014 set support rules would fail in “SQL product installation rule” with below error

—————————
Rule Check Result
—————————
Rule “Previous SQL product installation” failed. Â
A SQL product other than SQL Server 2014 CTP1 is detected. You cannot install this release until the existing instances of SQL products are uninstalled.

—————————
OKÂ Â Â
——————–


Cause

SQL Server 2014 CTP 1 is prerelease software and should be installed only on a clean machine with no other SQL Server instance.

More details in http://msdn.microsoft.com/en-us/library/dn169381(v=sql.15).aspx

Extract from above link

{

1.1 Limitations and Restrictions in SQL Server CTP 1

Issue: The following sections define the limitations and restrictions that apply to SQL Server CTP 1.

1.1.1 General limitations and restrictions
  • SQL Server 2014 CTP 1 is prerelease software and should be installed only on a clean machine.

  • SQL Server 2014 CTP 1 is a NON-PRODUCTION release and should not be installed and used in production environments.

  • SQL Server 2014 CTP 1 may contain branding from Microsoft SQL Server 2012 and is versioned as 11.0.

  • SQL Server 2014 CTP 1 is only available in the English language.

  • Microsoft SQL Server 2014 CTP 1 is not supported by Microsoft Customer Services and Support (CSS).

}

SQL Server Error while enabling Windows feature : NetFx3, Error Code : -2146498298

SQL Server 2012 setup might fails with below error when you do not have .Net frame work 3.5 features.

{
TITLE: Microsoft SQL Server 2012 Setup
——————————
The following error has occurred:
Error while enabling Windows feature : NetFx3, Error Code : -2146498298 , Please try enabling Windows feature : NetFx3 from Windows management tools and then run setup again. For more information on how to enable Windows features , see
http://go.microsoft.com/fwlink/?linkid=227143
For help, click: http://go.microsoft.com/fwlink?LinkID=20476&ProdName=Microsoft%20SQL%20Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=11.0.2100.60&EvtType=0x681D636F%25401428%25401
——————————
BUTTONS:
}



To resolve the above error open server manager à Add roles and features wizard à select .Net frame work 3.5 feature and install as shown in below image.

clip_image002[9]

If the installation of.Net frame work 3.5 feature fails most probably it should be because of incorrect SXS folder. In such case choose an alternate SXS folder for installation in “confirm installation screen” (Which would appear as soon as you click install on above screen)
You will find SXS folder in Windows DVD under \sources\SXS

How to create shared disk using iSCSI Software Target

One of the mandatory requirement to install SQL Server and similar application in cluster is to have shared disk.

I will explain how to create shared disk using iSCSI software target in this blog. You can download iSCSI Software Target from This link.

Installing Microsoft iSCSI software target.

When you invoke the self extracting package from downloaded above link it extracts  X64 and x86 version of installer.

  • Select iSCSI_target  for installation on the system which will act as iSCSI target. We will create iSCSI target disks in this machine and these disks will be shared by nodes using iSCSI initiator.
  • Select iSCSItargetClient_public and install in nodes in which you would like to have shared disk probably all nodes which is going to be part of cluster you are installing.



INSTALLATION IN CLUSTER NODES:(Follow same steps in all the nodes which will be part of cluster which you are installing)

Install iSCSItargetClient _public in all nodes which are going to be part of cluster which you are installing .

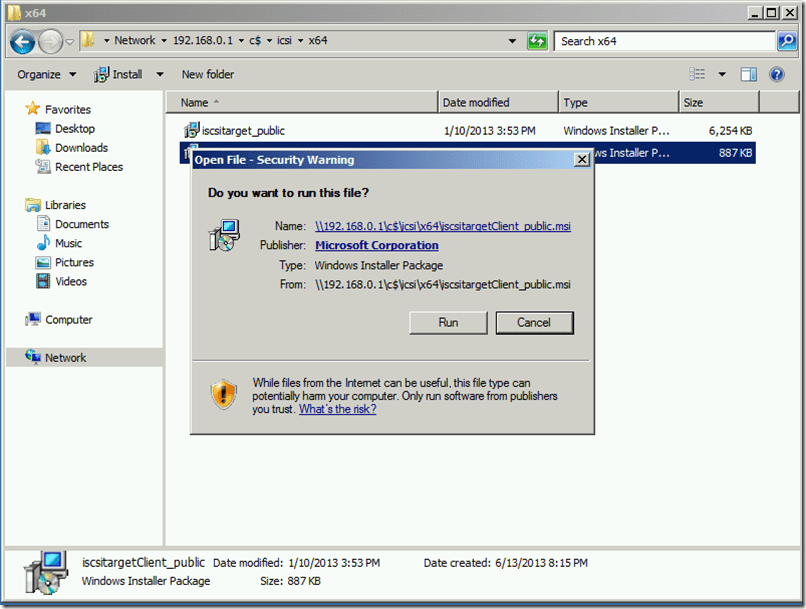

Run the file to start the installation.

clip_image001[6]

Click Next and continue

Select the type of installation as Typical.

clip_image001[12]

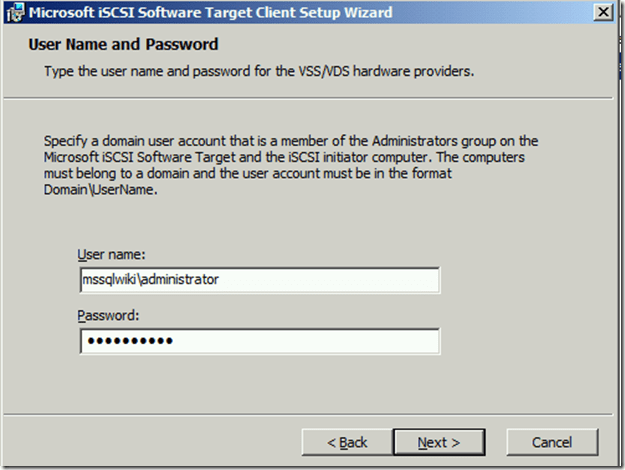

Specify users account that is member of administrators group in system which is acting iSCSI target and iSCSI initiator (current system).

clip_image001[16]

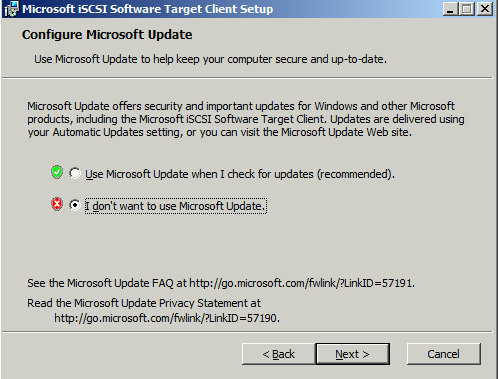

Configure other settings.

clip_image001[18]

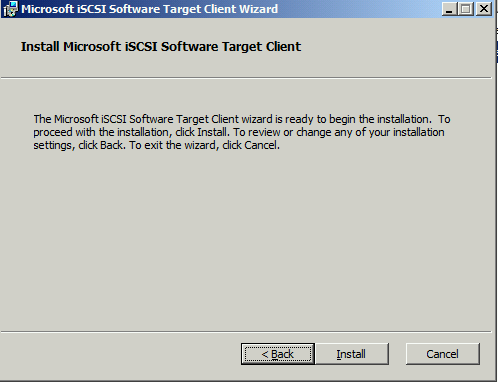

Start the installation by clicking Install button.

clip_image001[20]



clip_image001[22]

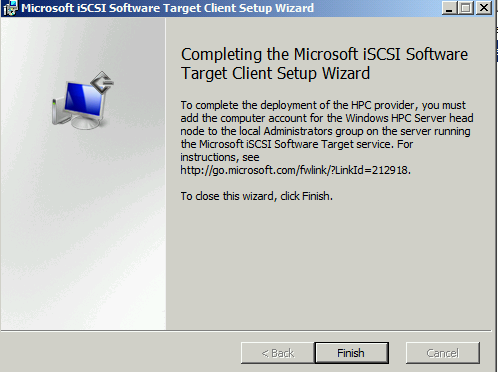

Click finish to complete the installation

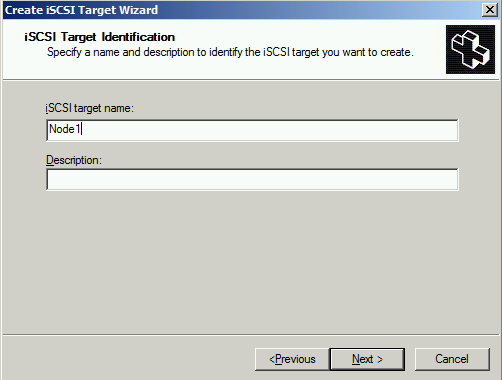

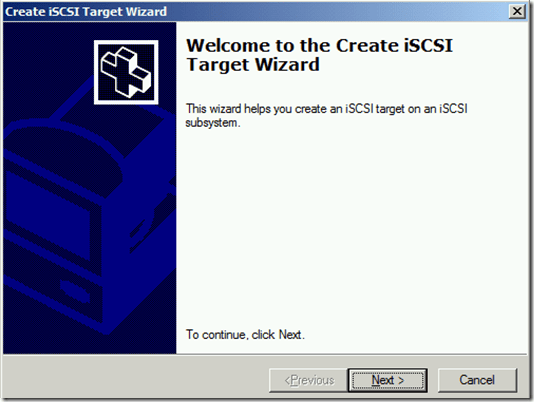

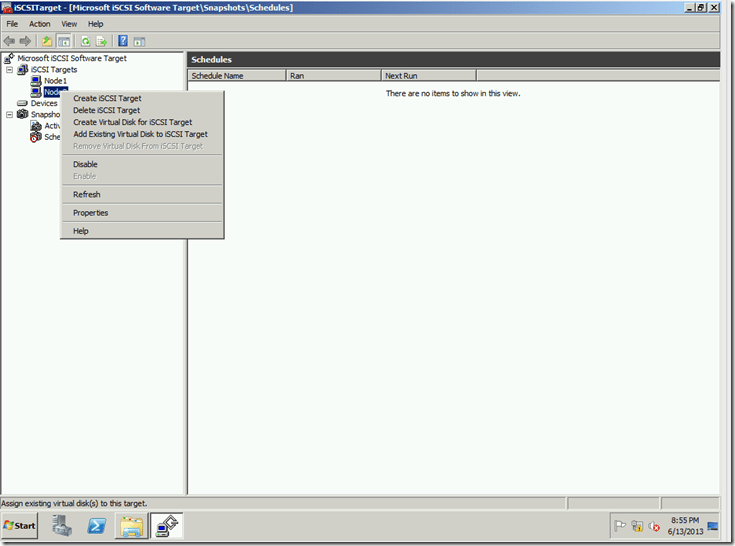

Install the  iSCSI_target on the system which will act as iSCSI target probably file server (or) Domain controller if you are installing failover clustering for testing.

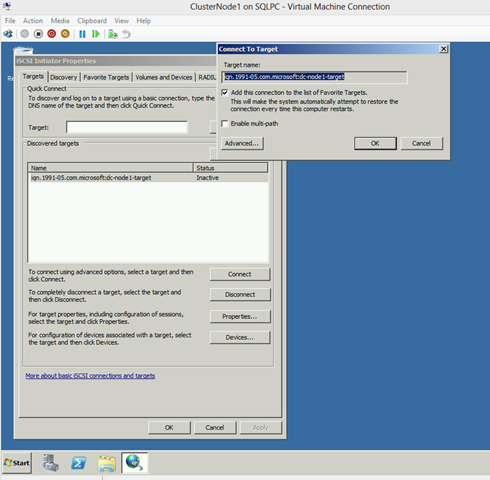

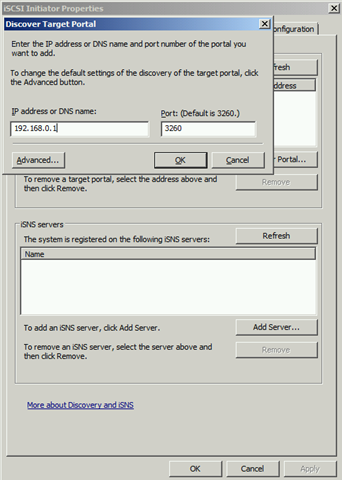

CONFIGURE iSCSI INITIATOR IN CLUSTER NODE’S:

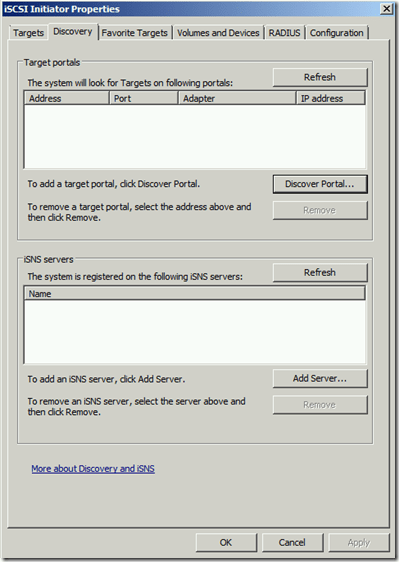

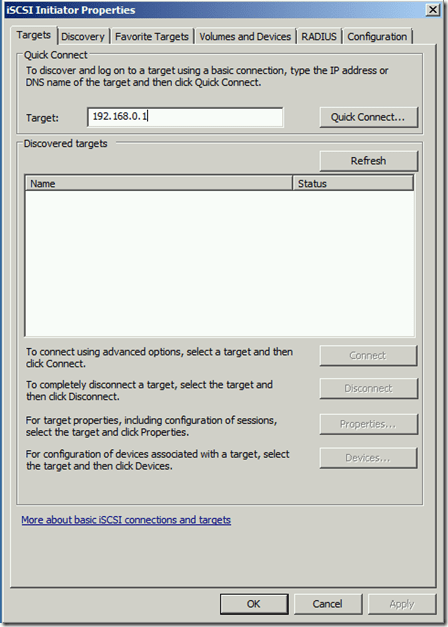

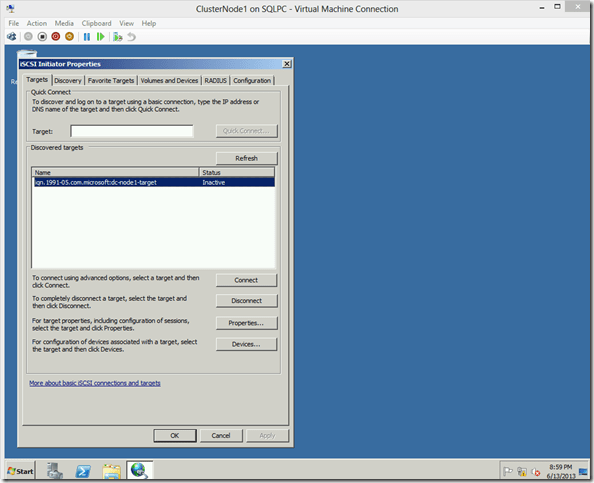

After installation,Open ISCSI initiator.

clip_image001[24]

  • Select yes  and continue.

clip_image001[26]

  • Type the target server name and click on Quick Connect

clip_image001[28]

                                       (Or)

  • Click Discover panel and select the target sever.



clip_image001[30]

  • Give the server IP address.Click ok.

clip_image001[32]

Similarly Follow the above steps and select the target in all nodes of cluster.



Configuring iSCSI target

Now after selecting the target,we have to add the all the iSCSI clients in iSCSI target.

Open MS iSCSI Target in system which is acting as iSCSI target.



clip_image001[34]

Right click iSCSI target->create ISCSI target.

clip_image001[36]

Create target wizard will open.

clip_image001[38]

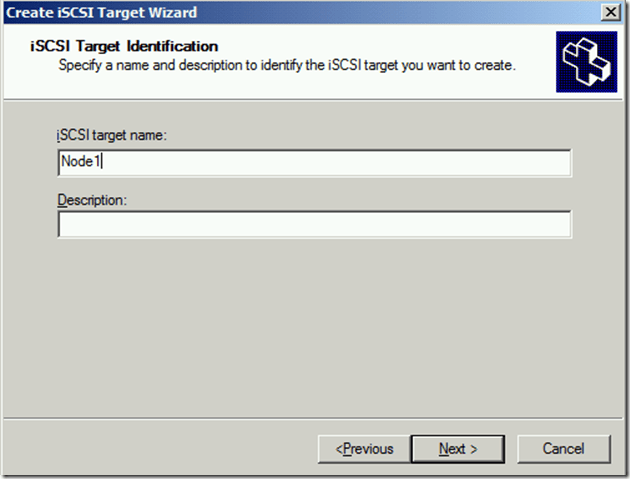

Specify the target node name,click Next.

clip_image001[40]

Browse and select the iSCSI initiator,click ok.

clip_image001[42]

Selected initiator will appear.Click Next.

clip_image001[44]

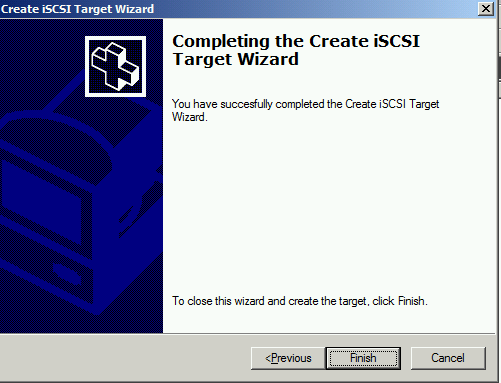

Click Finish and complete the target creation.

clip_image001[46]

Target Node1 is added.

clip_image001[48]

Follow the above steps in all nodes.



CREATING VIRTUAL DISK FOR  ALL NODES:

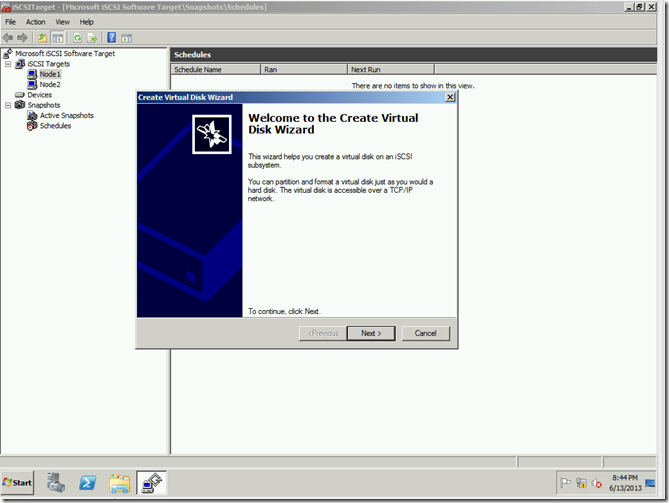

To create virtual disk in iSCSI target right click Node1->Create virtual disk.

Click Next.



clip_image001[52]

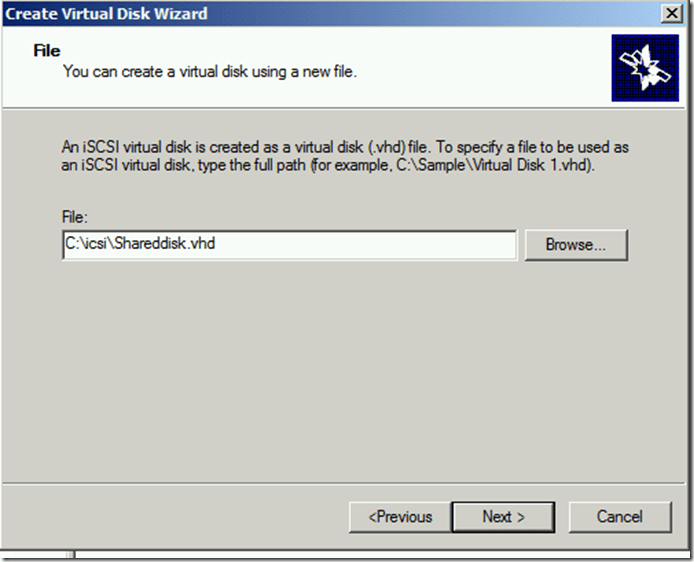

Specify the file name which will be used as virtual disk.Specify it with .vhd extension.Click Next.

clip_image001[54]

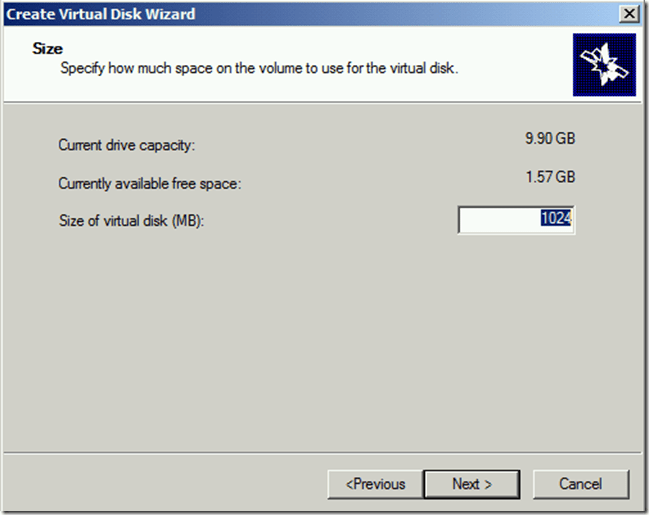

Specify the size for your virtual disk.Click Next.

clip_image001[56]

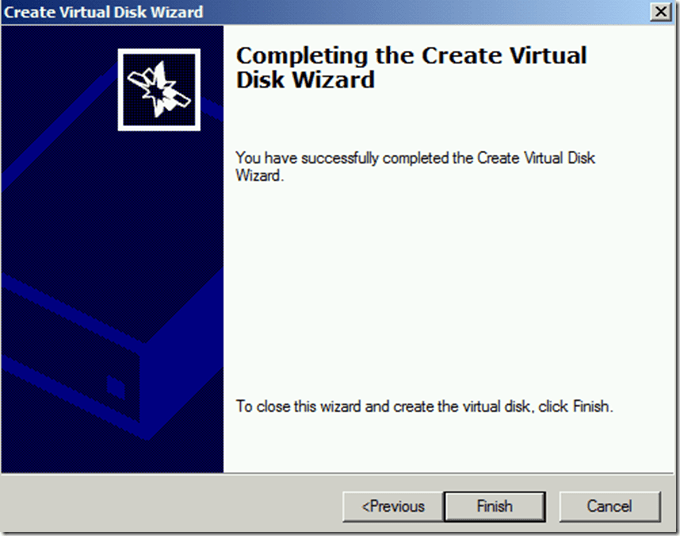

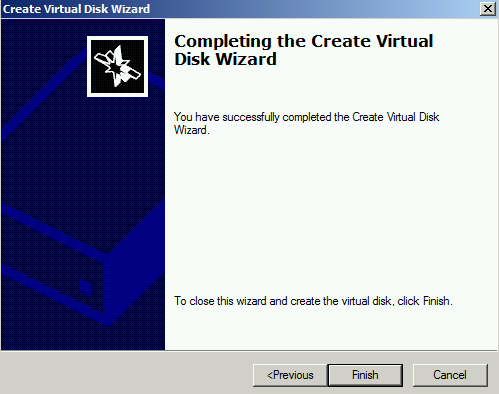

  Click Finish.

clip_image001[58]

For node2,Right click Node2->Add Existing virtual disk to iSCSI target.

clip_image001[60]

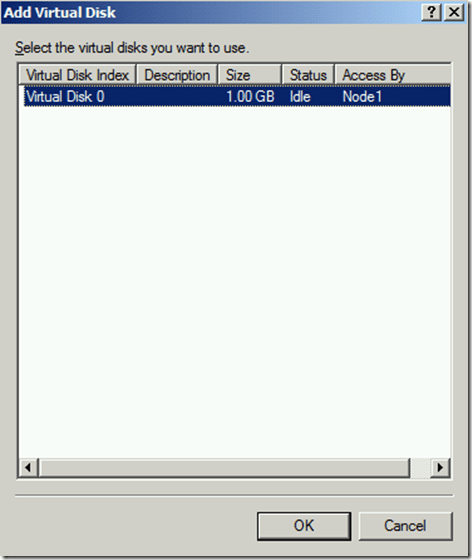

Click OK.

clip_image001[62]

CLUSTER NODES:

Now after adding the nodes as target in DC,we have to initiate the server in cluster nodes.

Select iSCSI initiator.Click Refresh,if you didn’t get any discovered target.

clip_image001[64]

Select the target  and connect it.Click OK.

clip_image001[66]

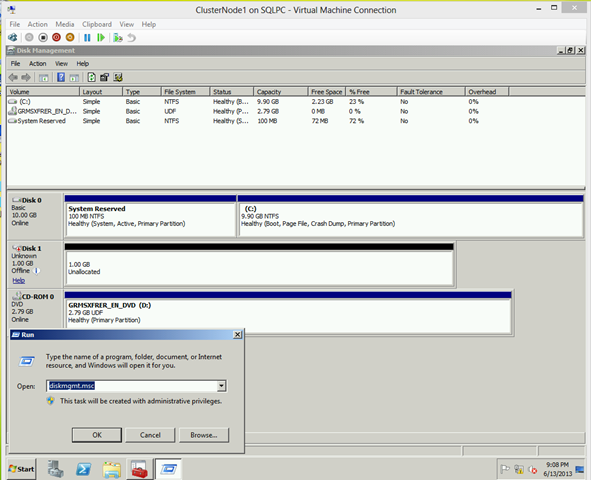

Open Disk management in cluster nodes:

clip_image001[68]

Right click Disk1->Online

clip_image001[70]

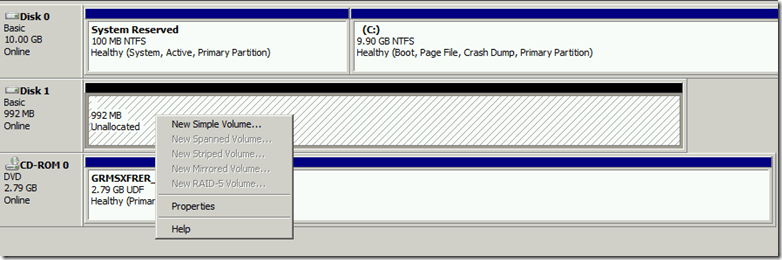

  Again ,Right click Disk1->New Simple Volume.

clip_image001[72]

New Simple Volume Wizard->Format this volume with the following setting.Click Next.

  clip_image001[76]

Then Finish the setting.

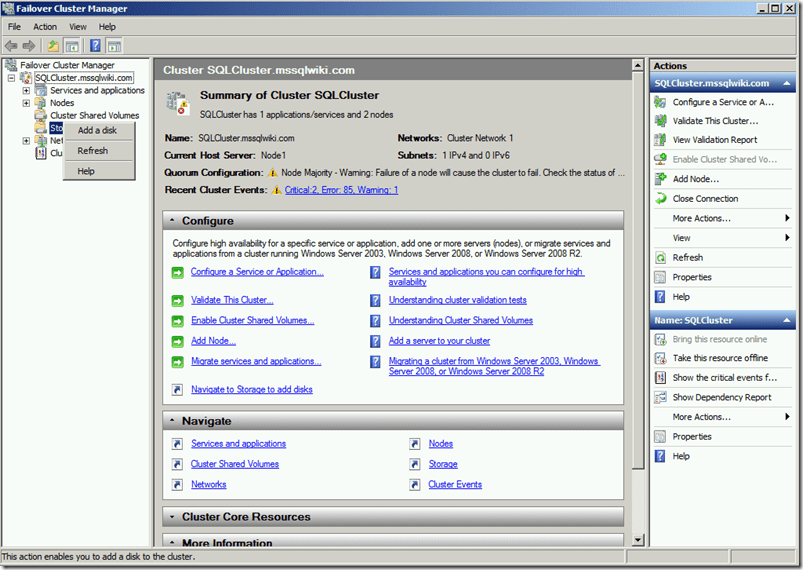

Open Failover cluster manager.Expand SQL Cluster.mssql.wiki.com.

Storage->Add a disk.

clip_image001

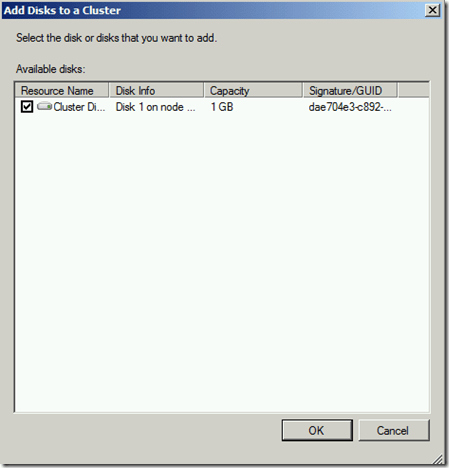

Click OK and add disk to a cluster.

clip_image001[4]

Disk is added. (If disk is created for one node,automatically it will be shared by other node)

clip_image001[8]



Now the shared disk is ready for use and can be used for installation of SQL Server cluster (or) any other cluster aware application which needs shared disk.

FILESTREAM feature is disabled

Restore database (or) SQL Server setup fails in script upgrade mode with below error
{
Msg 5591, Level 16, State 4, Line 2
FILESTREAM feature is disabled.
Msg 3013, Level 16, State 1, Line 2
RESTORE DATABASE is terminating abnormally.
}

Follow the steps in http://msdn.microsoft.com/en-us/library/cc645923.aspx and enable File stream, then restore the database.

If the upgrade for SQL Server is failing with error “ESTREAM feature is disabled” then enable file stream in configuration manager by following above article and start SQL Server by following steps mentioned in

 SQL Server2008/SQL Server2012: Script level upgrade for database ‘master’ failed  and run below statement to change file stream access level

sp_configure filestream_access_level, 2
RECONFIGURE with override

After you executed the above statement start the SQL Server normally.
